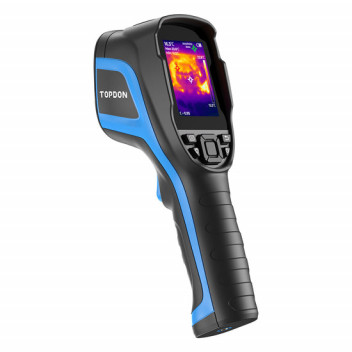

TOPDON TC004 Handheld Thermal Imaging Camera

High Resolution & Thermal SensitivityThe TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images.A high thermal sensitivity of 0.05℃ allows the TC004 to distinguish between tiny temperature differences.Three Measurement Modes & Auto-DetectionThe TC004 has three different measurements to detect center, hot and cold spots.The automatic detection feature allows users view temperature differences more visually.Wide FOVThe TC004 also features a wide 56° FOV for to easily capture more objects in view. There is also no need to adjust focal length.Wide Measurement Range & AccuracyThe TC004 features a wide temperature measurement range of -20℃ - +350℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.NETD of this high-precision infrared sensor is less than 40mK and thermal imaging resolution displays down to 0.1℃. The tool\'s margin of error is less than 2%. This is to ensure the upmost accurate thermal readings.PC Image Analysis and Instant ProjectionProfessional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.One-Day RuntimeA powerful integrated battery allows the TC004 to have a 12-hour runtime.Built-in Fill LED LightA built-in LED light allows users to record thermal readings without an additional light source.Compact and Solid DesignIP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

• \'LWH: 9.45” x 2.76” x 3.54” (240 x 70 x 90mm)
• Weight: 18.3 oz (520g)
• Storage Temp: 14°F to 131°F (-10 to +55℃)
• Working Temp: 14°F to 122°F (-10 to +50℃)
• Screen Size: 2.8-inch Display (7.1 cm)
• Resolution: 256x192 Pixels
• Object Temp. Range: -4°F to +662°F (-20 to 350℃)
• Spectral Range: 8 – 14μm
• Image Frequency: 20 Hz
• Focal Length: 0.12 in. (3.2 mm)
• Heat Sensitivity: 40mk
